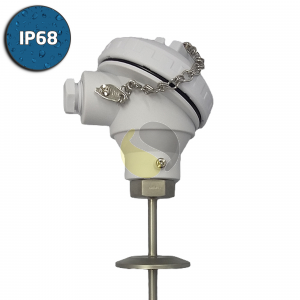

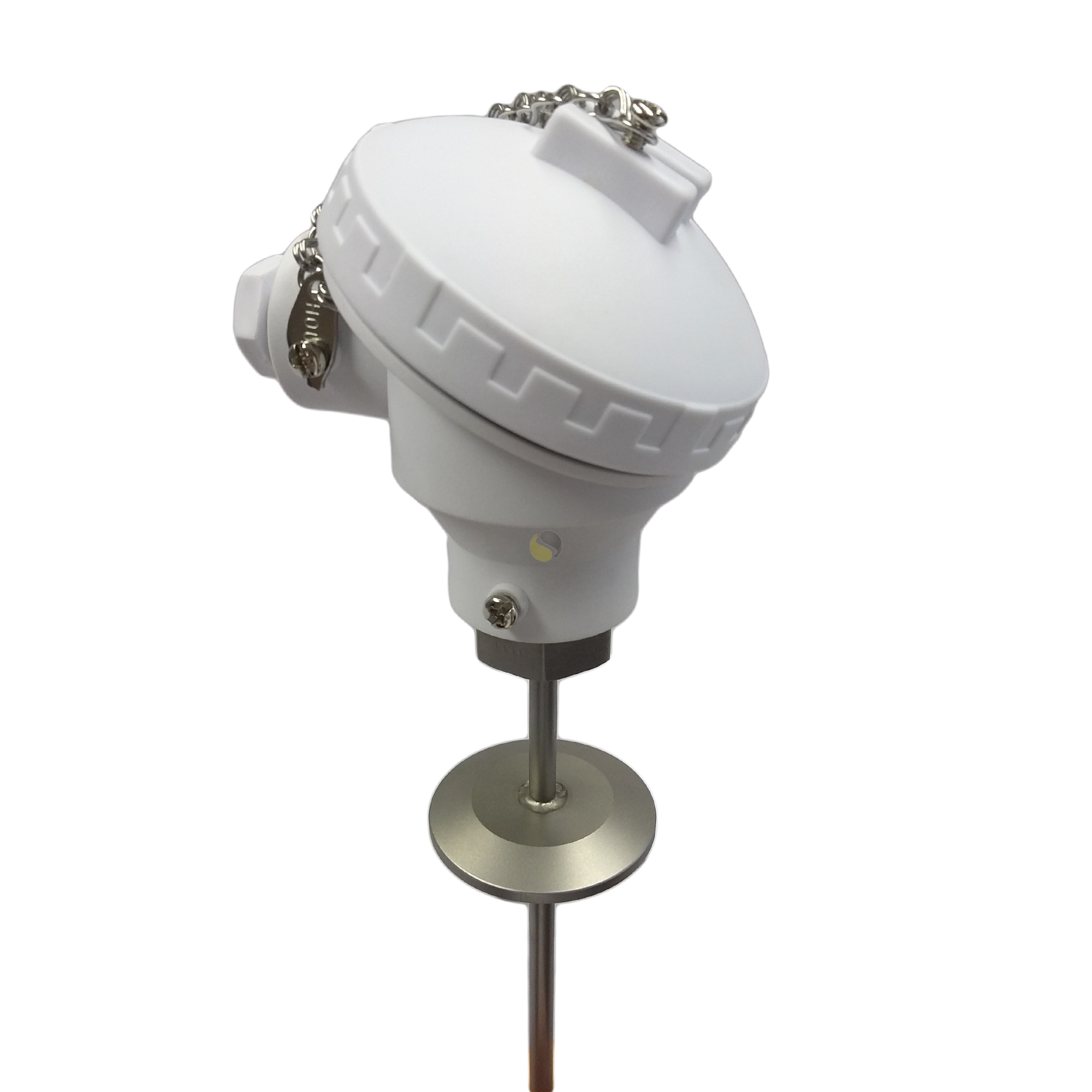

Hygienic RTD (Pt100) Sensor

Stock code : RFHYG

Availability : In stock

From

£50.43

 A Pt100 resistance thermometer with Tri-Clamp process connection for  hygienic applications.

Need Help?

Extended Description

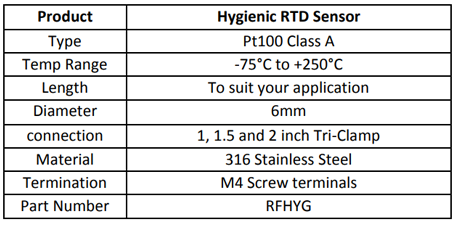

Specification

Hygienic RTD (Pt100) Sensor

Features

• Class A accuracy
• 1, 1.5 and 2 inch Tri-Clamp flange available
• 3 wire RTD configuration
• FDA approved terminal head
• IP68 rating

Application

• Food and Beverage
• Dairy
• Pharmaceutical

Need Help?

spec sheet
Description Part Number Stock Price Qty Basket
6mm Dia x 50mm Long with 1.5" Tri-Clamp RFHYG56MM1ST0A6D 3 - 7 Days
£50.43
Add
6mm Dia x 100mm Long with 1.5" Tri-Clamp RFHYG56MM1ST016D 3 - 7 Days
£50.98
Add
6mm Dia x 150mm Long with 1.5" Tri-Clamp RFHYG56MM1ST0B6D In Stock
£51.53
Add
6mm Dia x 50mm Long with 2" Tri-Clamp RFHYG56MM02T0A6D 3 - 7 Days
£51.51
Add
6mm Dia x 100mm Long with 2" Tri-Clamp RFHYG56MM02T016D 3 - 7 Days
£52.06
Add
6mm Dia x 150mm Long with 2" Tri-Clamp RFHYG56MM02T0B6D 3 - 7 Days
£52.61
Add
