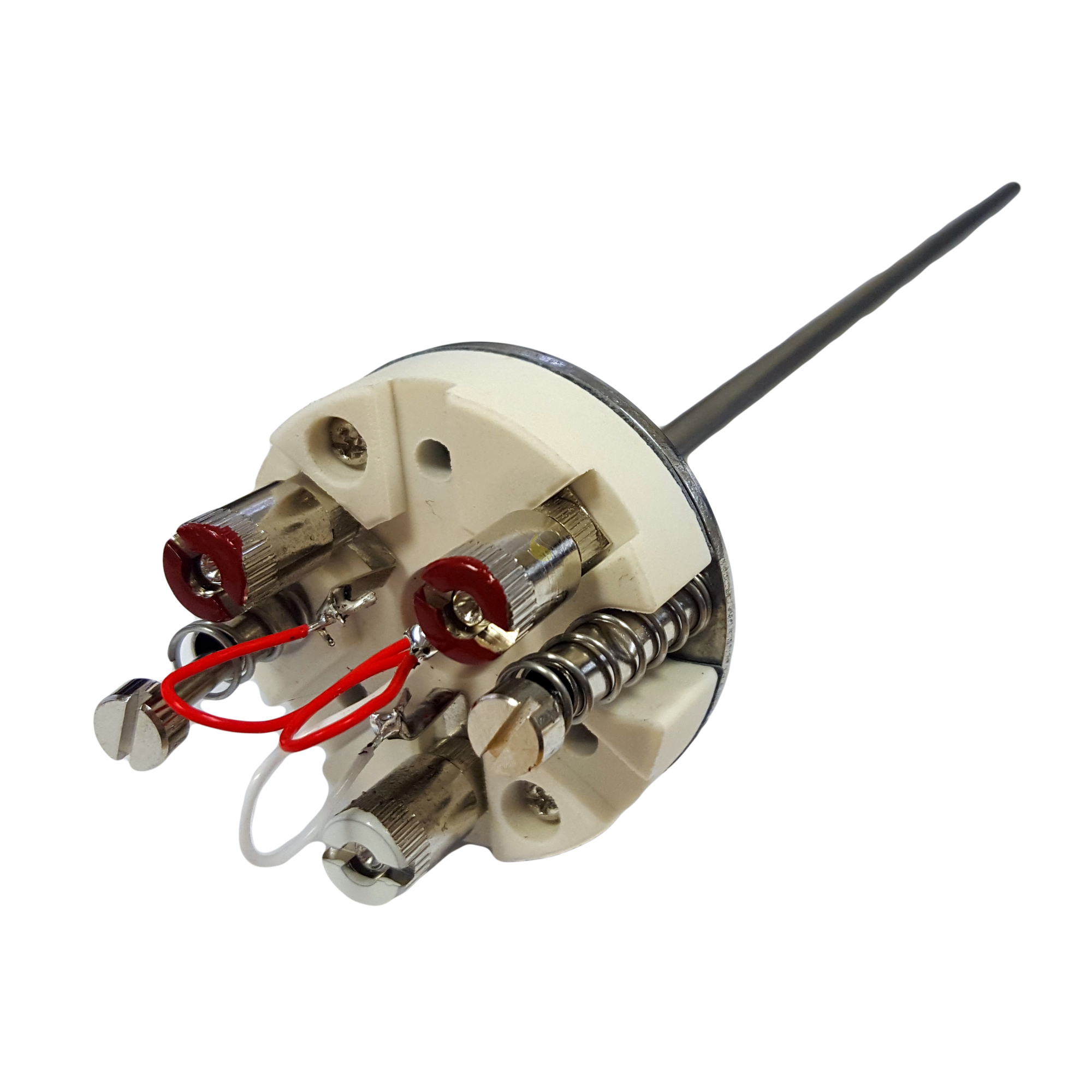

Spring Loaded RTD Insert with Ceramic Block

Stock code : RFINS

Availability : In stock

From

£25.00

Spring loaded inserts for RTD assemblies to suit new or existing thermowells with a temperature range of -50 to +250°C; designed for fast and simple replacement.

Extended Description

Specification

Spring Loaded RTD Insert With Ceramic Block

Features

Simple to replace for plant efficiency
Spring loaded promotes good thermal contact and fast reliable response
Optional transmitter that replaces the ceramic terminal block
Bespoke manufactured options
For higher accuracy we offer optional class A or 1/10 DIN available on request

Application

Pipes
Vessels
Machinery
Chemical & Plants

spec sheet

Class B Detector with 3mm Diameter Sheath
Class B Detector with 6mm Diameter Sheath
Class B Detector with 8mm Diameter Sheath
Transmitters (Optional)

Description	Part Number	Stock	Price	Basket
3 Wire class B 3mm x 100mm	RFINS33MM1000060	In Stock	£25.00	Add
3 Wire class B 3mm x 150mm	RFINS33MM1500060	In Stock	£26.00	Add
3 Wire class B 3mm x 200mm	RFINS33MM2000060	In Stock	£26.00	Add
3 Wire class B 3mm x 250mm	RFINS33MM2500060	In Stock	£27.00	Add
3 Wire class B 3mm x 300mm	RFINS33MM3000060	In Stock	£28.00	Add
3 Wire class B 3mm x 400mm	RFINS33MM4000060	In Stock	£29.00	Add
3 Wire class B 3mm x 500mm	RFINS33MM5000060	In Stock	£30.00	Add
3 Wire class B 3mm x 750mm	RFINS33MM7500060	In Stock	£33.00	Add
3 Wire class B 3mm x 1000mm	RFINS33MM01M0060	In Stock	£37.00	Add

Description	Part Number	Stock	Price	Basket
3 Wire class B 6mm x 100mm	RFINS36MM1000060	In Stock	£25.00	Add
3 Wire class B 6mm x 150mm	RFINS36MM1500060	In Stock	£26.00	Add
3 Wire class B 6mm x 200mm	RFINS36MM2000060	3 - 7 Days	£26.00	Add
3 Wire class B 6mm x 250mm	RFINS36MM2500060	In Stock	£27.00	Add
3 Wire class B 6mm x 300mm	RFINS36MM3000060	In Stock	£28.00	Add
3 Wire class B 6mm x 400mm	RFINS36MM4000060	3 - 7 Days	£29.00	Add
3 Wire class B 6mm x 500mm	RFINS36MM5000060	3 - 7 Days	£30.00	Add
3 Wire class B 6mm x 750mm	RFINS36MM7500060	3 - 7 Days	£33.00	Add
3 Wire class B 6mm x 1000mm	RFINS36MM01M0060	3 - 7 Days	£37.00	Add

Description	Part Number	Stock	Price	Basket
3 Wire class B 8mm x 100mm	RFINS38MM1000060	3 - 7 Days	£26.00	Add
3 Wire class B 8mm x 150mm	RFINS38MM1500060	3 - 7 Days	£27.00	Add
3 Wire class B 8mm x 200mm	RFINS38MM2000060	3 - 7 Days	£28.00	Add
3 Wire class B 8mm x 250mm	RFINS38MM2500060	3 - 7 Days	£28.00	Add
3 Wire class B 8mm x 300mm	RFINS38MM3000060	3 - 7 Days	£29.00	Add
3 Wire class B 8mm x 400mm	RFINS38MM4000060	3 - 7 Days	£30.00	Add
3 Wire class B 8mm x 500mm	RFINS38MM5000060	3 - 7 Days	£31.00	Add
3 Wire class B 8mm x 750mm	RFINS38MM7500060	3 - 7 Days	£35.00	Add
3 Wire class B 8mm x 1000mm	RFINS38MM01M0060	3 - 7 Days	£38.00	Add

Description	Part Number	Stock	Price	Qty	Basket
RTD in-head Transmitter	IXINHP	In Stock	£62.00		Add
ATEX RTD	IXATEP	10-14 Days	£100.00		Add
