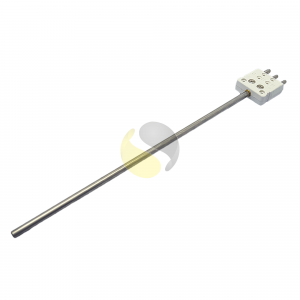

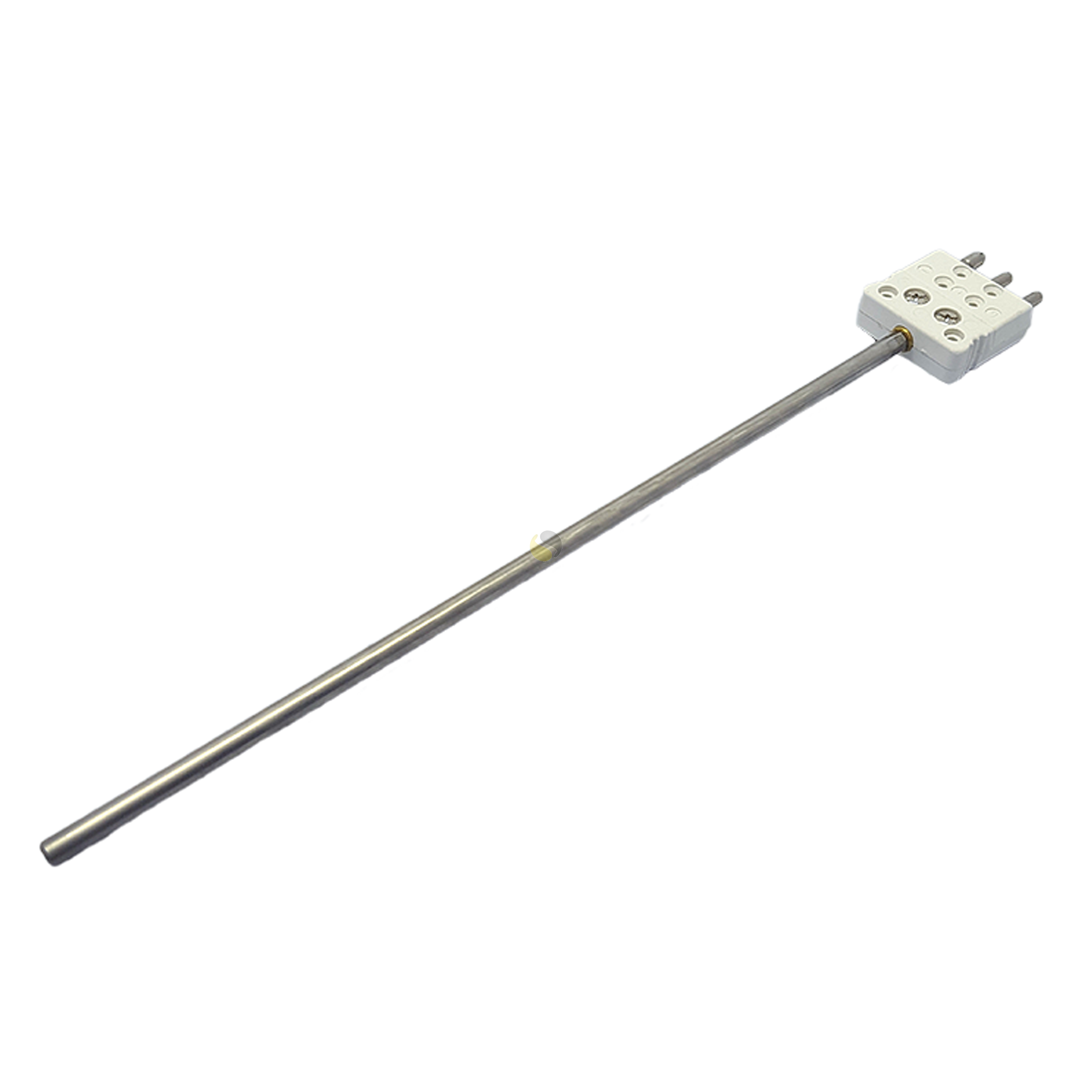

Pt100 RTD with Standard 3 Pin Plug

Stock code : RGSPP

Availability : In stock

From

£20.46

 RTD resistance thermometer (Pt100) with 316 Stainless steel sheath  and 3 pin standard plug.

Need Help?

Extended Description

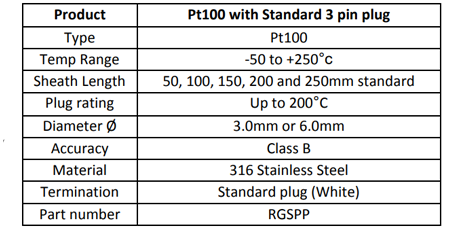

Specification

Pt100 with Standard 3 Pin Plug

Features

      • Pt100 Class B
        • 316 Stainless Steel
          • Low cost
            • High accuracy and repeatability
              • Ideal when quick disconnection is required
                • 100 Ohm platinum RTD 3-wire element
                  • Bespoke Manufacture
                    • Optional class A, 1/10 DIN or Pt1000 available on request

Applications

      • Ideal for Quick Connect Applications
        • Water Treatment
          • Research & Laboratory
            • Test & Measurement

Need Help?

spec sheet
Description Part Number Stock Price Qty Basket
3 Wire class B 3mm x 100mm RGSPP33MM1000062 3 - 7 Days
£21.48
Add
3 Wire class B 3mm x 150mm RGSPP33MM1500062 In Stock
£22.04
Add
3 Wire class B 3mm x 200mm RGSPP33MM2000062 3 - 7 Days
£22.59
Add
3 Wire class B 3mm x 250mm RGSPP33MM2500062 3 - 7 Days
£23.14
Add
3 Wire class B 3mm x 300mm RGSPP33MM3000062 In Stock
£23.69
Add
3 Wire class B 3mm x 400mm RGSPP33MM4000062 3 - 7 Days
£24.79
Add
3 Wire class B 3mm x 500mm RGSPP33MM5000062 3 - 7 Days
£25.89
Add
3 Wire class B 3mm x 750mm RGSPP33MM7500062 3 - 7 Days
£28.65
Add
3 Wire class B 3mm x 1000mm RGSPP33MM01M0062 3 - 7 Days
£31.40
Add
Description Part Number Stock Price Qty Basket
3 Wire class B 6mm x 100mm RGSPP36MM1000062 3 - 7 Days
£20.46
Add
3 Wire class B 6mm x 150mm RGSPP36MM1500062 In Stock
£22.04
Add
3 Wire class B 6mm x 200mm RGSPP36MM2000062 3 - 7 Days
£22.59
Add
3 Wire class B 6mm x 250mm RGSPP36MM2500062 3 - 7 Days
£23.14
Add
3 Wire class B 6mm x 300mm RGSPP36MM3000062 In Stock
£23.69
Add
3 Wire class B 6mm x 400mm RGSPP36MM4000062 3 - 7 Days
£24.79
Add
3 Wire class B 6mm x 500mm RGSPP36MM5000062 3 - 7 Days
£25.89
Add
3 Wire class B 6mm x 750mm RGSPP36MM7500062 3 - 7 Days
£28.65
Add
3 Wire class B 6mm x 1000mm RGSPP36MM01M0062 3 - 7 Days
£31.40
Add
Description Part Number Stock Price Qty Basket
Standard 3 pin RTD Socket CCSRCDSOC In Stock
£5.21
Add
