Pt100 Penetration Probe

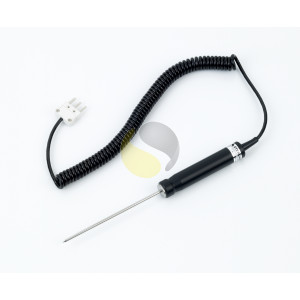

Hand held Pt100 RTD penetration probe used to puncture solid or semi-solid materials.

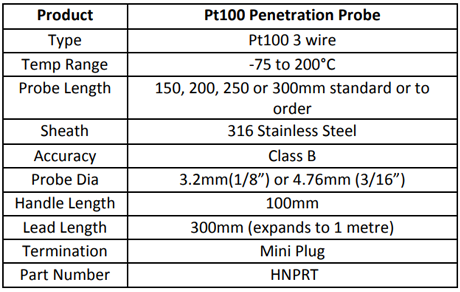

This rigid stemmed, hand held RTD has a class B Pt100 element and a 3-wire configuration. The sheath has a pointed tip and is designed for penetration into solids, semi-solids or liquids with a measurement range of -75 to 200°C.

The sensing element is housed in a 3.2mm (1/8”) or 4.76mm (3/16”) diameter 316 stainless steel tube which is swaged to a sharp point with a number of standard probe lengths available. It includes a plastic handle, 1 metre coiled cable and a 3-pin mini plug.
