Pt100 Load Temperature Probe for Autoclaves

Pt100 load sensor designed to prevent moisture ingress when exposed to water or steam in autoclaves and sterilisers.

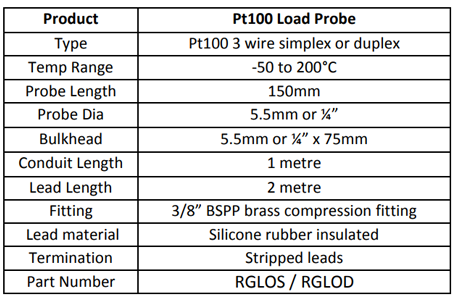

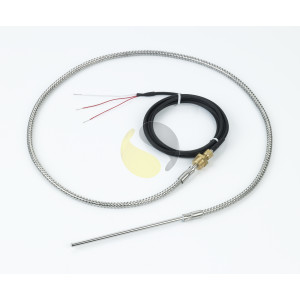

These resistance thermometer load sensors have a Pt100 Class B element housed in a 5.5mm diameter stainless steel sheath 150mm long (1/4” diameter for Duplex probes).  This is then terminated into a flexible conduit lead 1 meter long, housing silicone rubber insulated wires. A stainless steel bulkhead transition piece allows a compression fitting to seal the chamber.

The sensor is supplied with an integral 3/8” BSPP brass fitting as standard and comes complete with a 2 metre silicone insulated flexible lead wire.

The RTD is supplied in either single or duplex 3 wire versions, with the constructions designed to stop the ingress of moisture in the high pressure environment of autoclaves or sterilisers.
