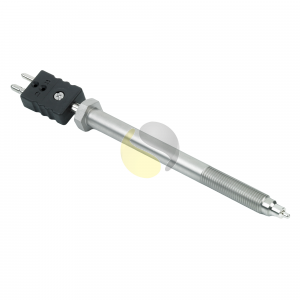

Plastic Melt-Bolt Thermocouples

Stock code : TGPLA

Availability : In stock

From

£76.41

 Melt-bolt thermocouples used for the temperature measurement of  molten plastic.

Need Help?

Extended Description

Specification

Specification

Features

  • Type K or J thermocouple
  • 76mm or 152mm bolt lengths
  • 5mm or flush sensing tip
  • 1/2 inch UNF-20 thread
  • Standard thermocouple plug

Application

  • Plastic extruders
  • Nozzles
  • Injection moulding

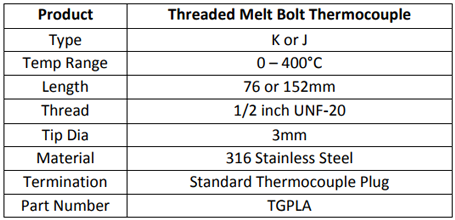

spec sheet
Description Part Number Stock Price Qty Basket
Type K 76mm x 5mm tip TGPLAK0765MM0062 3 - 7 Days
£76.41
Add
Type K 76mm flush tip TGPLAK0760000062 3 - 7 Days
£76.41
Add
Type K 152mm x 5mm tip TGPLAK1525MM0062 3 - 7 Days
£79.87
Add
Type K 152mm flush tip TGPLAK1520000062 3 - 7 Days
£79.87
Add
Description Part Number Stock Price Qty Basket
Type J 76mm x 5mm tip TGPLAJ0765MM0062 In Stock
£76.41
Add
Type J 76mm flush tip TGPLAJ0760000062 In Stock
£76.41
Add
Type J 152mm x 5mm tip TGPLAJ1525MM0062 In Stock
£79.87
Add
Type J 152mm flush tip TGPLAJ1520000062 3 - 7 Days
£79.87
Add
