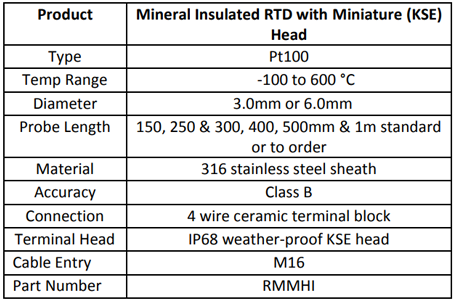

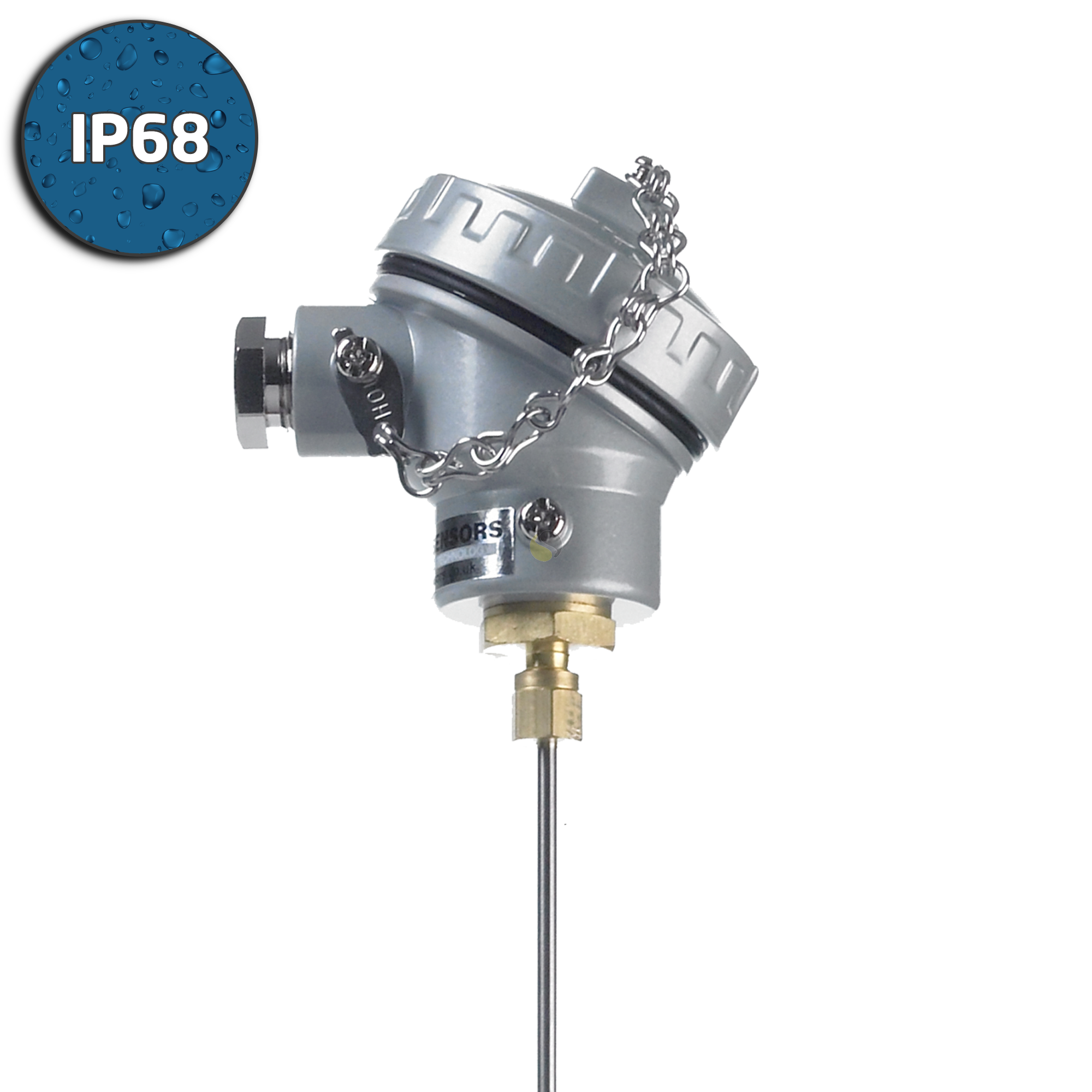

Resistance temperature detector (Pt100) with mineral insulated Stainless Steel sheath terminated with a miniature (KSE) head.

Pt100 resistance thermometers manufactured from mineral insulated cable are suitable for use with temperatures up to 600°C. The sensing element is housed within the tip of the 3mm or 6mm probe providing protection from oils, gasses and other minerals.

Although shown straight, theses mineral insulated sensors can be manipulated and shaped to suit the application, they can also be manufactured in very long lengths.

The RTD has a screw top IP68 miniature weather-proof head which can be used with smaller diameter probes and is ideal for applications where there is restricted access or space is limited. It has an M16 cable entry and comes with a ceramic terminal block.
