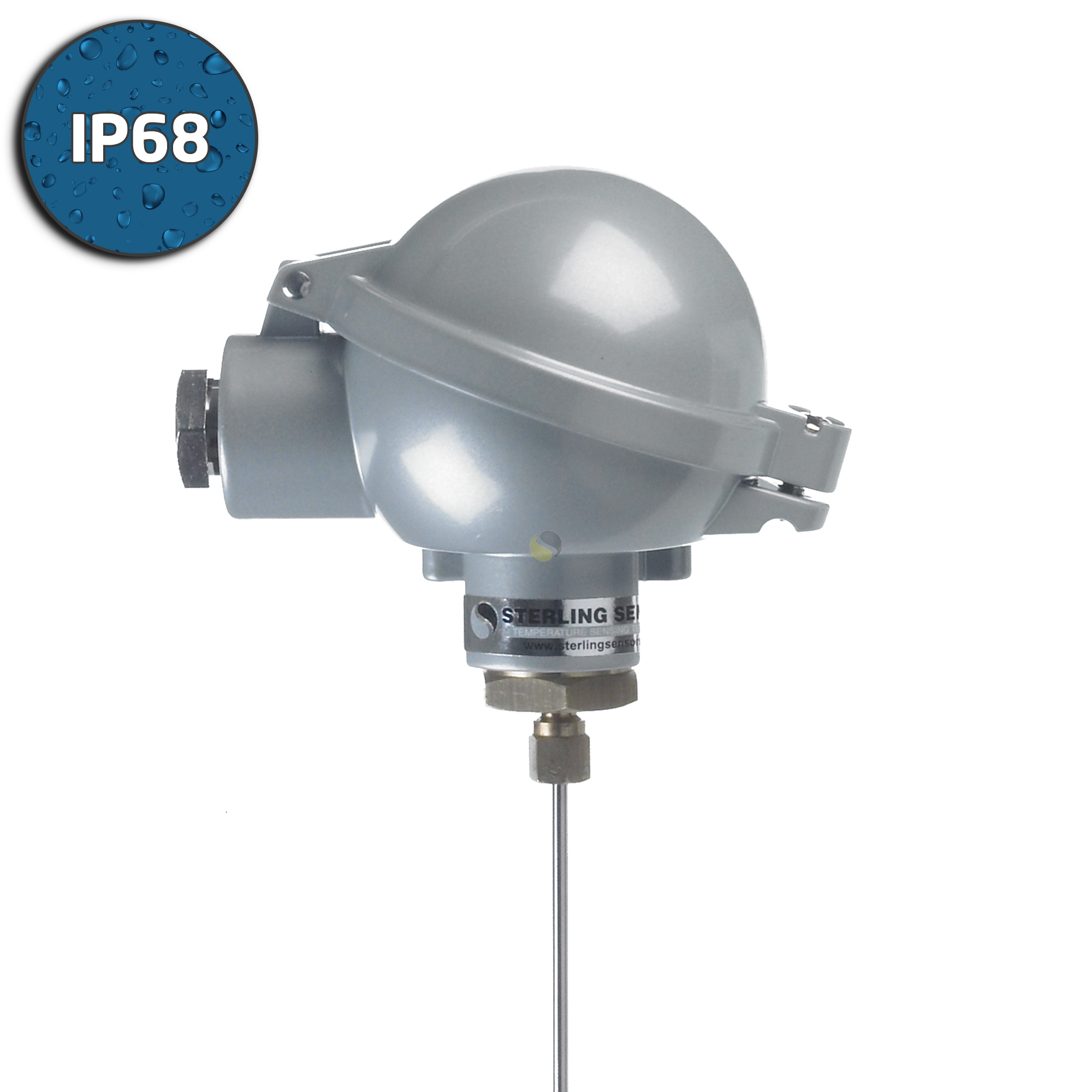

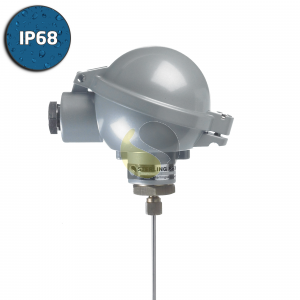

Mineral insulated RTD with industrial (BUZ) head for use in high temperature applications where close accuracy is required.
Pt100 resistance thermometers manufactured from mineral insulated cable are suitable for temperatures of up to 600°C. The MIRT is housed within a 6mm or 8mm diameter sheath which is terminated using an IP68 weather-proof (BUZ) head complete with 4 wire ceramic terminal block or in-head transmitter.
Although shown straight, mineral insulated resistance thermometers can be bent around formers (with a radius of three times the probe diameter) and at angles and shapes to suit the application. They can also be manufactured in very long lengths.
The flip top IP68 (BUZ) weather-proof head is sealed with an M5 screw and has an M20 cable entry. It is widely used in industrial applications due to its robust construction and its resistance to a number of liquids and gasses.
