Mineral Insulated RTD with Pot Seal

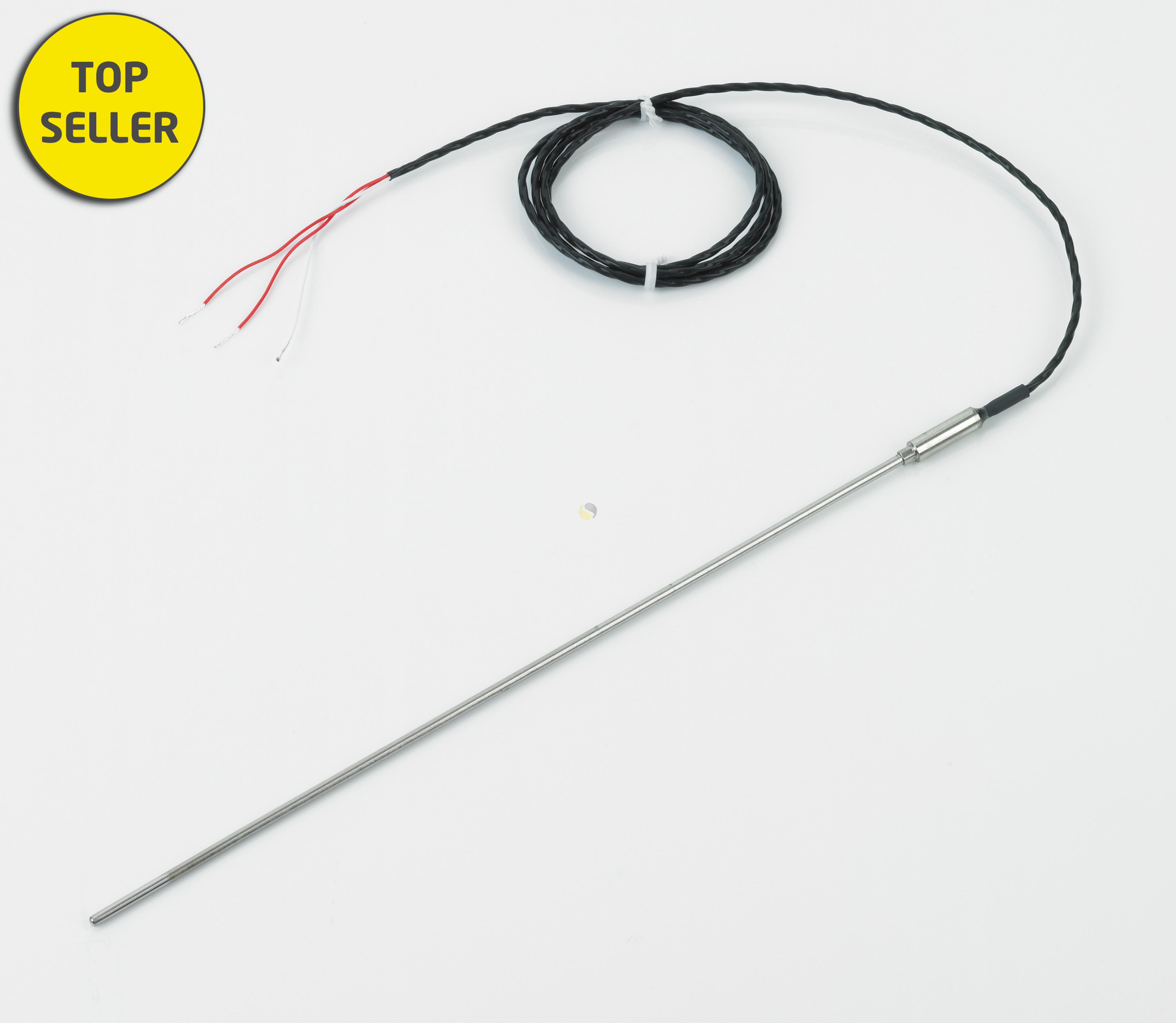

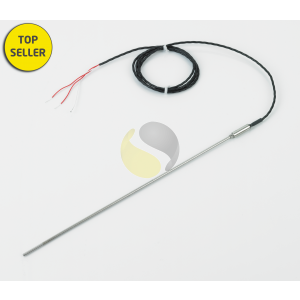

Mineral Insulated RTD (Pt100) with Plain Pot Seal and 1 metre Lead Wire

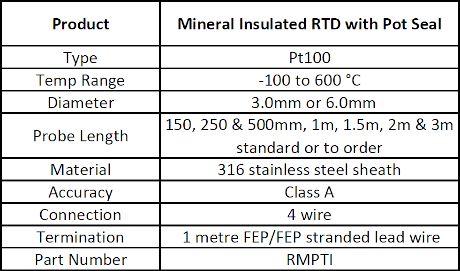

Pt100 resistance thermometers manufactured from mineral insulated cable are suitable for use up to temperatures of 600°C. The RTD is supplied in 3 or 6mm diameter and is terminated using a plain pot seal, epoxy resin filled with one metre FEP/FEP stranded 4 wire connection.

Although shown straight, mineral insulated resistance thermometers can be bent around formers (with a radius of three times the probe diameter) and at angles and shapes to suit the application. They can also be manufactured in very long lengths.
