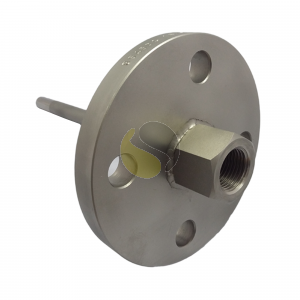

Fabricated Thermowell with Stainless Steel Flange

Stock code : PFSF1 / PFSF2 / PFSF3 / PFSF4

Availability : In stock

From

£39.81

 Fabricated thermowell assembly with 316 Stainless Steel probe and ANSI  raised face flange.

Need Help?

Extended Description

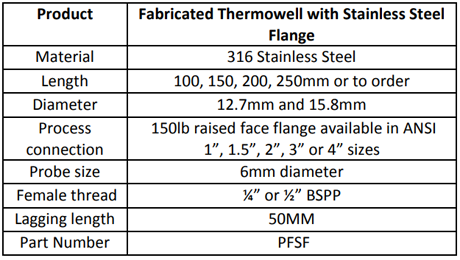

Specification

Specification for Fabricated Thermowell with Stainless Steel Flange

Features

  • 316 Stainless steel
  • Available in ANSI 1”, 1.5”, 2”, 3”or 4” sizes
  • Quick interchange of sensors
  • Bespoke manufactured options to suit your process

Applications

  • Pipes
  • Vessels
  • Machinery
spec sheet
Description Part Number Stock Price Qty Basket
11mm dia to suit 6mm with 1" 150lb ANSI raised face flange, 100mm insertion and 1/2 BSPP female thread PFSF10011100006J In Stock
£39.81
Add
11mm dia to suit 6mm with 1.5" 150lb ANSI raised face flange, 100mm insertion and 1/2 BSPP female thread PFSF50011100006J 7 - 10 Days
£58.84
Add
11mm dia to suit 6mm with 2" 150lb ANSI raised face flange, 100mm insertion and 1/2 BSPP female thread PFSF20011100006J 7 - 10 Days
£72.36
Add
11mm dia to suit 6mm with 3" 150lb ANSI raised face flange, 100mm insertion and 1/2 BSPP female thread PFSF30011100006J 7 - 10 Days
£83.26
Add
11mm dia to suit 6mm with 4" 150lb ANSI raised face flange, 100mm insertion and 1/2 BSPP female thread PFSF40011100006J 7 - 10 Days
£96.40
Add
Description Part Number Stock Price Qty Basket
11mm dia to suit 6mm with 1" 150lb ANSI raised face flange, 150mm insertion and 1/2 BSPP female thread PFSF10011150006J 7 - 10 Days
£41.06
Add
11mm dia to suit 6mm with 1.5" 150lb ANSI raised face flange, 150mm insertion and 1/2 BSPP female thread PFSF50011150006J 7 - 10 Days
£60.09
Add
11mm dia to suit 6mm with 2" 150lb ANSI raised face flange, 150mm insertion and 1/2 BSPP female thread PFSF20011150006J 7 - 10 Days
£73.62
Add
11mm dia to suit 6mm with 3" 150lb ANSI raised face flange, 150mm insertion and 1/2 BSPP female thread PFSF30011150006J 7 - 10 Days
£84.51
Add
11mm dia to suit 6mmwith 4" 150lb ANSI raised face flange, 150mm insertion and 1/2 BSPP female thread PFSF40011150006J 7 - 10 Days
£97.66
Add
Description Part Number Stock Price Qty Basket
11mm dia to suit 6mm with 1" 150lb ANSI raised face flange, 200mm insertion and 1/2 BSPP female thread PFSF10011200006J 7 - 10 Days
£42.31
Add
11mm dia to suit 6mm with 1.5" 150lb ANSI raised face flange, 200mm insertion and 1/2 BSPP female thread PFSF50011200006J 7 - 10 Days
£60.09
Add
11mm dia to suit 6mm with 2" 150lb ANSI raised face flange, 200mm insertion and 1/2 BSPP female thread PFSF20011200006J 7 - 10 Days
£74.87
Add
11mm dia to suit 6mm with 3" 150lb ANSI raised face flange, 200mm insertion and 1/2 BSPP female thread PFSF30011200006J 7 - 10 Days
£85.76
Add
11mm dia to suit 6mm with 4" 150lb ANSI raised face flange, 200mm insertion and 1/2 BSPP female thread PFSF40011200006J 7 - 10 Days
£98.91
Add
Description Part Number Stock Price Qty Basket
11mm dia to suit 6mm with 1" 150lb ANSI raised face flange, 250mm insertion and 1/2 BSPP female thread PFSF10011250006J 7 - 10 Days
£43.57
Add
11mm dia to suit 6mm with 1.5" 150lb ANSI raised face flange, 250mm insertion and 1/2 BSPP female thread PFSF50011250006J 7 - 10 Days
£60.09
Add
11mm dia to suit 6mm with 2" 150lb ANSI raised face flange, 250mm insertion and 1/2 BSPP female thread PFSF20011250006J 7 - 10 Days
£76.12
Add
11mm dia to suit 6mm with 3" 150lb ANSI raised face flange, 250mm insertion and 1/2 BSPP female thread PFSF30011250006J 7 - 10 Days
£87.01
Add
11mm dia to suit 6mm with 4" 150lb ANSI raised face flange, 250mm insertion and 1/2 BSPP female thread PFSF40011250006J 7 - 10 Days
£100.16
Add
Description Part Number Stock Price Qty Basket
15.8mm dia to suit 6mm with 1" 150lb ANSI raised face flange, 100mm insertion and 1/2 BSPP female thread PFSF105/8100006J 7 - 10 Days
£40.81
Add
15.8mm dia to suit 6mm with 1.5" 150lb ANSI raised face flange, 100mm insertion and 1/2 BSPP female thread PFSF505/8100006J 7 - 10 Days
£59.84
Add
15.8mm dia to suit 6mm with 2" 150lb ANSI raised face flange, 100mm insertion and 1/2 BSPP female thread PFSF205/8100006J 7 - 10 Days
£73.37
Add
15.8mm dia to suit 6mm with 3" 150lb ANSI raised face flange, 100mm insertion and 1/2 BSPP female thread PFSF305/8100006J 7 - 10 Days
£84.38
Add
15.8mm dia to suit 6mm with 4" 150lb ANSI raised face flange, 100mm insertion and 1/2 BSPP female thread PFSF405/8100006J 7 - 10 Days
£97.40
Add
Description Part Number Stock Price Qty Basket
15.8mm dia to suit 6mm with 1" 150lb ANSI raised face flange, 150mm insertion and 1/2 BSPP female thread PFSF105/8150006J 7 - 10 Days
£40.54
Add
15.8mm dia to suit 6mm with 1.5" 150lb ANSI raised face flange, 150mm insertion and 1/2 BSPP female thread PFSF505/8150006J 7 - 10 Days
£62.98
Add
15.8mm dia to suit 6mm with 2" 150lb ANSI raised face flange, 150mm insertion and 1/2 BSPP female thread PFSF205/8150006J 7 - 10 Days
£76.49
Add
15.8mm dia to suit 6mm with 3" 150lb ANSI raised face flange, 150mm insertion and 1/2 BSPP female thread PFSF305/8150006J 7 - 10 Days
£87.51
Add
15.8mm dia to suit 6mm with 4" 150lb ANSI raised face flange, 150mm insertion and 1/2 BSPP female thread PFSF405/8150006J 7 - 10 Days
£100.53
Add
Description Part Number Stock Price Qty Basket
15.8mm dia to suit 6mm with 1" 150lb ANSI raised face flange, 200mm insertion and 1/2 BSPP female thread PFSF105/8200006J 7 - 10 Days
£47.07
Add
15.8mm dia to suit 6mm with 1.5" 150lb ANSI raised face flange, 200mm insertion and 1/2 BSPP female thread PFSF505/8200006J 7 - 10 Days
£66.10
Add
15.8mm dia to suit 6mm with 2" 150lb ANSI raised face flange, 200mm insertion and 1/2 BSPP female thread PFSF205/8200006J 3 - 7 Days
£79.62
Add
15.8mm dia to suit 6mm with 3" 150lb ANSI raised face flange, 200mm insertion and 1/2 BSPP female thread PFSF305/8200006J 7 - 10 Days
£90.64
Add
15.8mm dia to suit 6mm with 4" 150lb ANSI raised face flange, 200mm insertion and 1/2 BSPP female thread PFSF405/8200006J 7 - 10 Days
£103.66
Add
Description Part Number Stock Price Qty Basket
15.8mm dia to suit 6mm with 1" 150lb ANSI raised face flange, 250mm insertion and 1/2 BSPP female thread PFSF105/8250006J 7 - 10 Days
£50.20
Add
15.8mm dia to suit 6mm with 1.5" 150lb ANSI raised face flange, 250mm insertion and 1/2 BSPP female thread PFSF505/8250006J 7 - 10 Days
£69.23
Add
15.8mm dia to suit 6mm with 2" 150lb ANSI raised face flange, 250mm insertion and 1/2 BSPP female thread PFSF205/8250006J 7 - 10 Days
£82.76
Add
15.8mm dia to suit 6mm with 3" 150lb ANSI raised face flange, 250mm insertion and 1/2 BSPP female thread PFSF305/8250006J 7 - 10 Days
£93.77
Add
15.8mm dia to suit 6mm with 4" 150lb ANSI raised face flange, 250mm insertion and 1/2 BSPP female thread PFSF405/8250006J 7 - 10 Days
£106.79
Add
