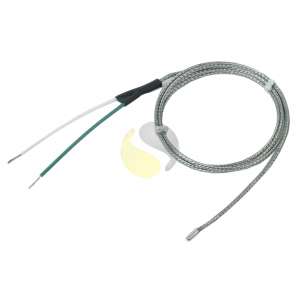

Compact bearing thermocouples for temperature measurement in low thermal mass applications

Our range of bearing thermocouples are designed for accurate and reliable temperature measurement where there are space limitations.

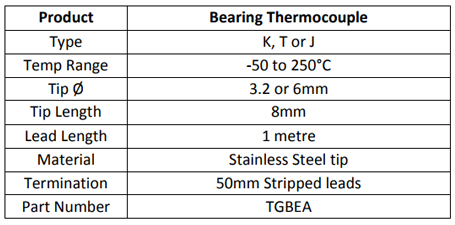

They are available in thermocouple types K, J & T and are used to detect changes in bearings and motor windings; however they can also be used in many applications where a low thermal mass option is required. Available in 3.2mm or 6mm diameter with an 8mm stainless steel housing and complete with 1 metre 7/0.2mm diameter stranded, PFA insulated, stainless steel over-braided extension cable with 50mm tails.
