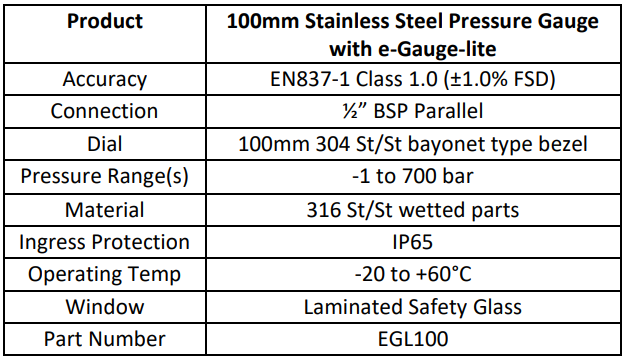

A range of high quality, industrial, all Stainless Steel pressure gauges fitted with e-Gauge®-lite.

e-Gauge®-lite is used to convert pressure or temperature gauges to pressure and temperature transmitters, it reads the position of the pointer on any 100mm or 160mm DIN cased analogue gauge to give a 4-20mA loop powered output.

This range of pressure gauges has a bottom or back entry ½” BSPP process connection with all 316L Stainless steel wetted parts.

The 100mm dial has a 304 stainless steel case with laminated safety glass, a bayonet type bezel and is supplied dry as standard. With optional Glycerine filled case for applications where vibration exists.

Available in pressure ranges from -1 to 700 bar (-30"Hg to 0-10000 PSI) including vacuum and compound.

The instrument is suitable for use in gaseous and liquid media in most general industrial applications.
