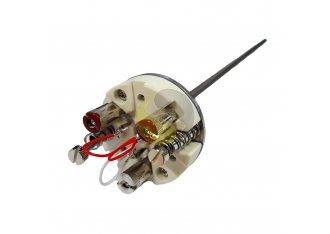

Spring Loaded RTD Insert with Ceramic Block

Availability : In stock

From £25.00

This easily interchangeable RTD sensor is used in thermowells with terminal heads and can be replaced with minimal time and effort. It has a ceramic terminal block and spring loaded screws for good thermal contact and fast, reliable response.

This high quality probe uses a Pt100 sensing element that is class B accuracy. Common diameters are 3mm, 6mm and 8mm. We have a standard range of lengths and manufacture specifically to suit your application.

The Pt100 sensing element is 10mm long and is placed at the tip of the sheath which means that the minimum immersion depth should be at least 50mm.

We provide a Thermocouple version of this sensor, please click here to view.
