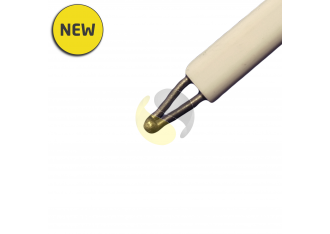

A ceramic insulated solid conductor thermocouple with exposed tip and bead welded for high temperature applications.
These type K thermocouples have a maximum continuous temperature rating of 1100°C. They are available in two conductor sizes of 1.6mm or 3.25mm with 25mm long oval ceramic insulators.
The double hole oval insulators are made from Mullite with a temperature rating of 1600°C.
Units can be cut down to length on site as the twin bore insulators are 25mm long and can be removed from the conductors easily.
Optional type R, S or B thermocouples are available and priced on request.
