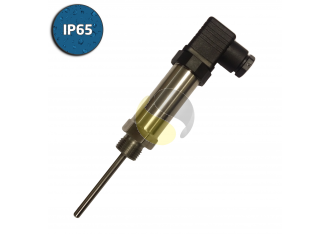

A Pt100 temperature sensor with 4-20 mA transmitter and standard DIN Hirschmann connection.

The class A Pt100 element is housed in 6mm diameter rigid stem 316 stainless steel sheath, available in standard lengths of 50, 100 or 150mm long below hex of a ½” BSP process connection.

It has an integral 4-20mA transmitter housed in a 316 stainless steel body. The output is a loop powered (10 to 30 Volts dc) 4-20mA signal with a default range of 0 – 100°C  and ambient operating temperature range of 0 to 75°C.

A DIN style Hirschmann connector is used for easy installation and replacement whilst maintaining reliability. The removable connector cable socket is IP65 rated and has a central fixing screw complete with PG7 cable gland suitable for 4.5 to 6mm diameter instrument wires.
